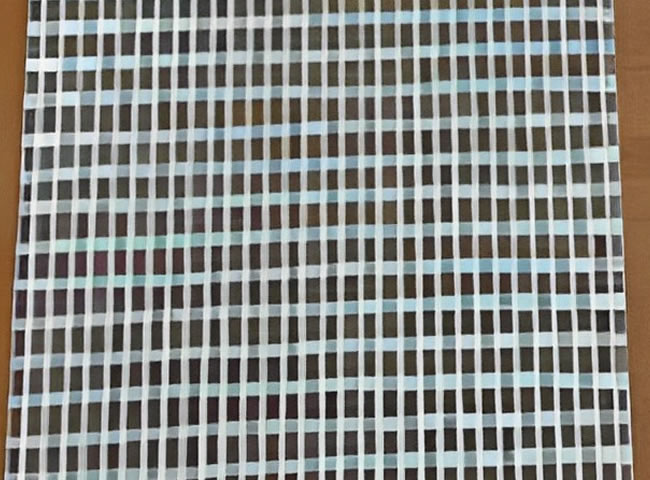

Fiber Glass Tape for Electrical Cable Manufacturing
We supply Fiber glass mesh tape for electrical cable manufacturing with quality compliance of UL854.
Fibeglass / Fibermesh tape for cable application
15mm, 20mm, 25mm, 30mm width.
Detail Specifications as below:
Fiber Mesh size: 20x10
Unit Weight: 70g/m2 - 75g/m2
Width: 40 mm
Length of roll: 20 mts
Colors: White
Thickness: 0.095mm to 0.105 mm
| Property | US Customary | Metric | Test Method |
| Thickness | 0.0045" | 0.114 mm | ASTM D374 |
| Weight | 13.5 lb/csy | 73.3 g/m2 | Measured |
| Yield | 7.4 sy/lb 1.25 lbs/mft @ 1" wide |
13.6 m2/kg 0.73 kg/km @ 10mm wide |
Calculated |
| Tensile Strength | 18000 psi | 124 MPa | Calculated |
| Break Strength | 80 piw | 140 N/cm | ASTM D882 |
General Properties
| Color | White |
| Surface | Dry PET side; slight tack reverse |
| Tread Count | 20 * 10 |
| Flammability | Self extinguishing when taped in place. Nonflammable scrim. |
| Core | 3" or 6" Paper |
| Shelf Life | 1 year in original packaging at 70o F |
